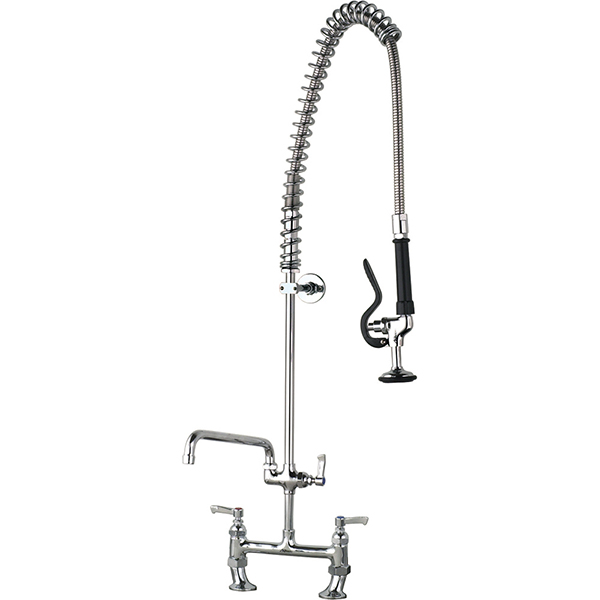

MECHLINE AquaJet AJPR30-ST-BF2-S

Description

MECHLINE AquaJet AJPR30-ST-BF2-S

• Tap Hole Centres: 170-230mm adjustable
• Accreditation: Kiwa KUKreg4 1+

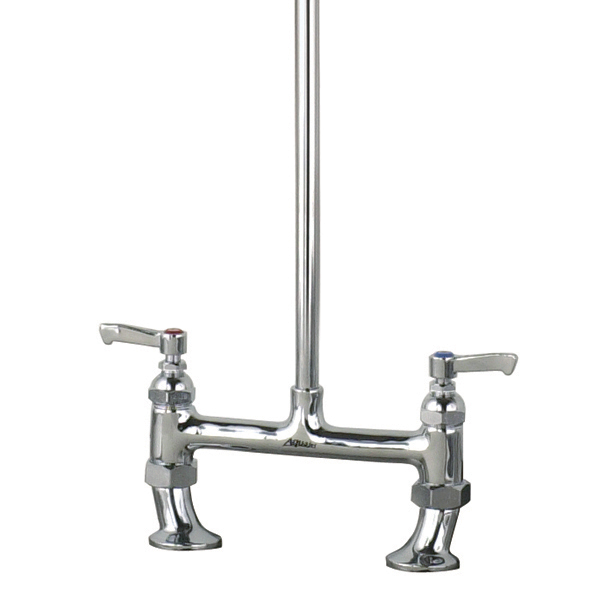

• Base: AJPR30

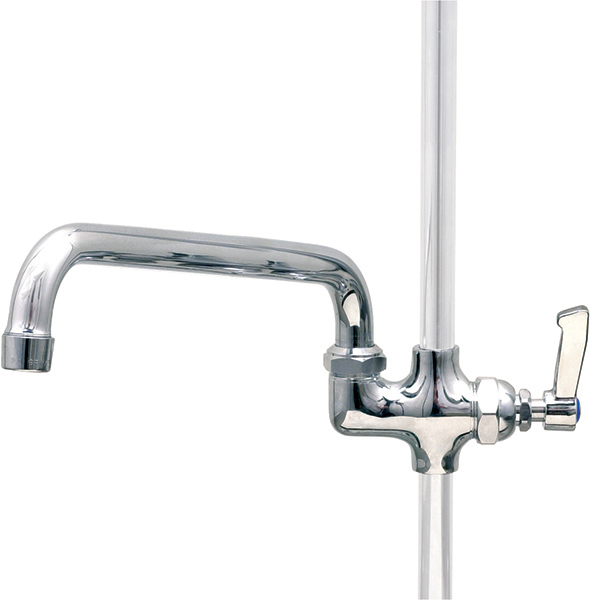

• Bowl Filler: 300mm bowl filler (BF2)
• Connection(s): 2x (M) ½-inch
• Controls: Lever
• Model Range: AquaJet 30
• Mount: Deck mounted
• Pedestal: Twin
• Spray Gun: Standard
• Style: Standard
• Water Feed: Twin

Technical Info:

• Connection: ½-inch BSP male threads on adjustable inlets
• 2x 25-28mm hole cut out requirement with hole centres between 170-230mm
• Height: 1190mm
• Product weight 5.43kg
• Recommended dynamic water pressure range: 1.5 – 5 bar. Max hot water temperature 60°C
• Product material: nickel plated brass, 304 stainless steel braided hose with EPDM lined inner hose
• Flow rates tested at 3 bar dynamic pressure: 7.9 l/m Bowl filler 6.04 l/m
• 1 year parts warranty
• Certified to KUK Reg4 1+ by Kiwa
• If this tap or combination tap is installed so that its base is no lower than the spillover level of the receiving vessel (for example, a sink or washbasin), a Type AUK3 air gap is achieved which permits installation of the tap in any premises where backflow protection up to Fluid Category 5 is required at the tap.
